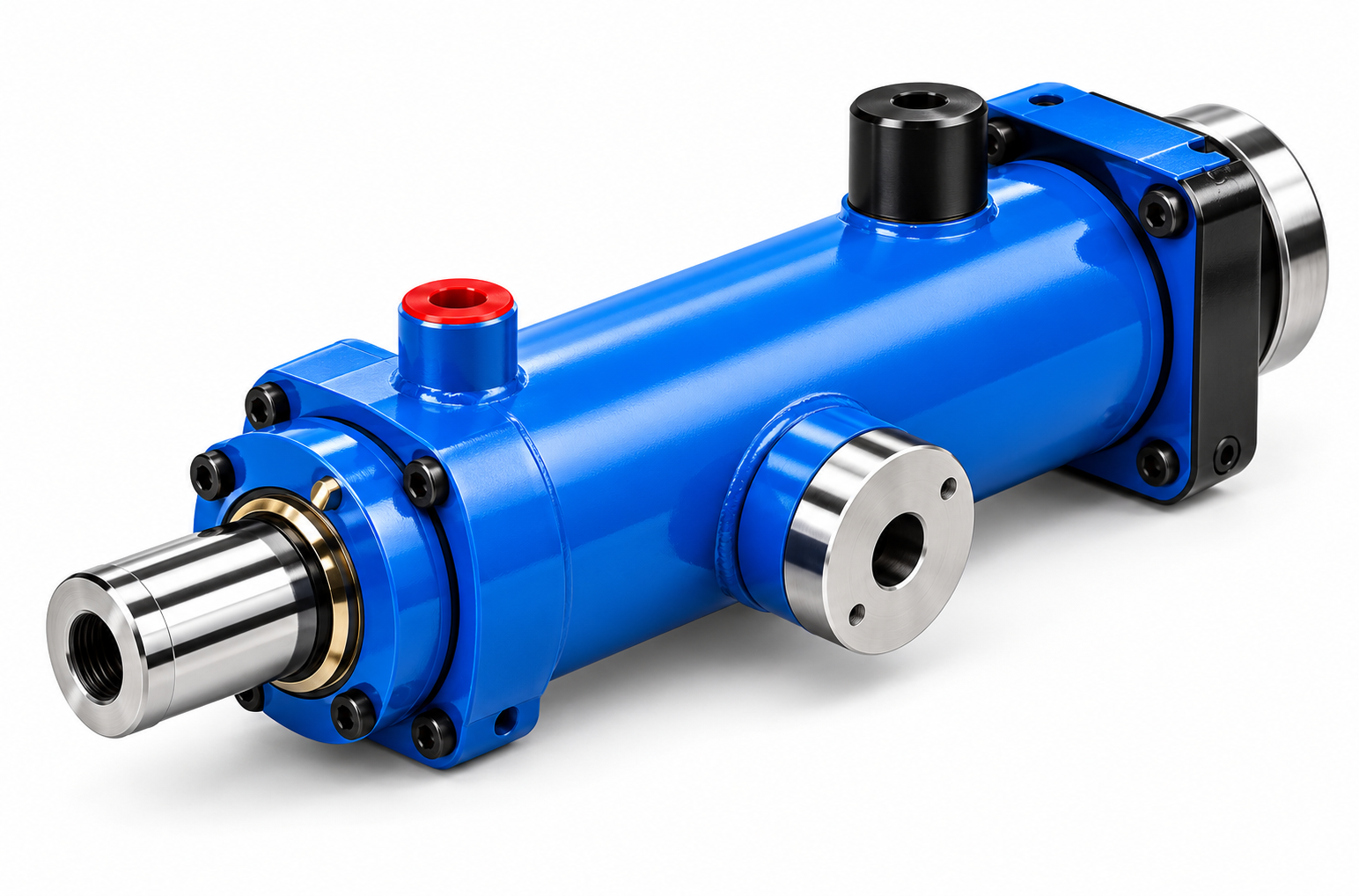

Helixeon Trunnion Cylinder

Helixeon Trunnion Cylinder for hydraulic actuator applications. Built to the selected mounting and stroke configuration.

Catalog specifications: No complete dimension and pressure specification is given for this illustrated configuration.

Options: Mounting and rod configuration as illustrated

Configuration required: Bore, rod diameter, stroke, working pressure, mounting drawing, ports and operating duty

Source model references: Configuration selected by drawing

Source pages: 8–10

Review note: Illustrated style; do not apply HSG bore dimensions to every mounting without a matching drawing.

Helixeon SKU is an internal catalog reference. Confirm the complete order code and application configuration before ordering.
