Compressed air leaving a compressor is hot, wet and contaminated. Every component downstream inherits those conditions. Air preparation is the discipline of correcting them before the air reaches a valve, cylinder or tool.

The three stages

Filtration

Particulate filters remove solid contamination, coalescing filters remove oil aerosols, and dryers remove water vapour. Filtration rating is a trade-off: finer filtration protects components better but costs more pressure drop and needs more frequent element changes.

Regulation

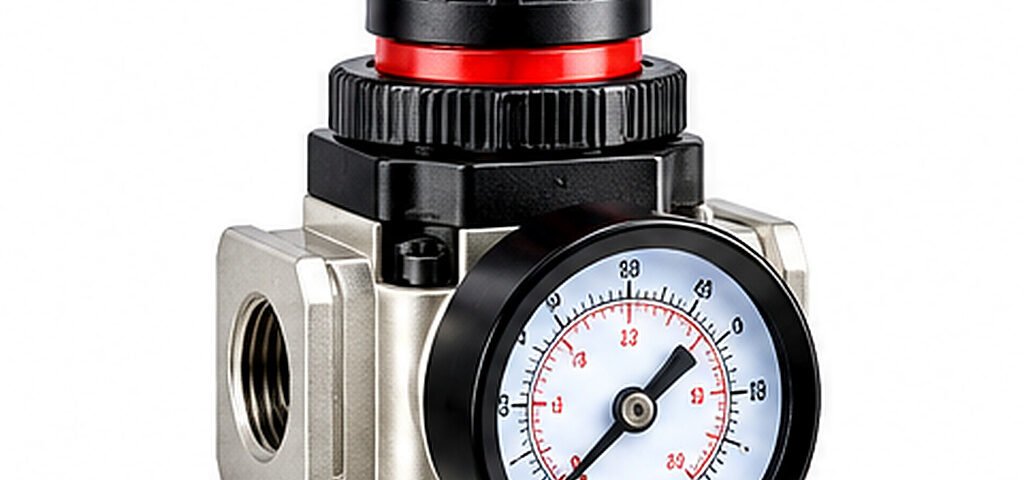

A regulator holds downstream pressure stable as upstream pressure and flow vary. Set it as low as the application reliably allows — every unnecessary bar of pressure costs energy continuously and accelerates seal wear.

Lubrication

Many modern valves are designed to run dry and should not be lubricated. Where lubrication is required, it must be continuous: intermittent oiling washes away the original grease and causes more harm than running dry.

Selection guidance

• Size the unit for the actual flow, not the port thread
• Place the filter before the regulator so debris does not damage the seat
• Use a coalescing filter where oil aerosol would damage the process
• Add a soft-start valve where sudden pressurisation would move actuators dangerously
• Include a pressure switch or gauge where operators need visible confirmation

Common mistakes

• Dirty bowls – a filter element left long past its life passes contamination and adds pressure drop
• Manual drains forgotten – water carries downstream into the valves
• Lubricating a dry-rated system – attracting dust and degrading seals
• Regulating at the compressor – pressure varies with demand at the point of use

Maintenance that actually helps

Replace elements on condition or schedule, never on failure. Log differential pressure across filters so replacement is driven by data. Drain receivers and bowls regularly, and check auto-drains still work — a failed auto-drain is indistinguishable from no drain at all until a valve fails.

Well-prepared air is the cheapest reliability improvement available in most pneumatic plants.
